Pipeline Laser Profiling

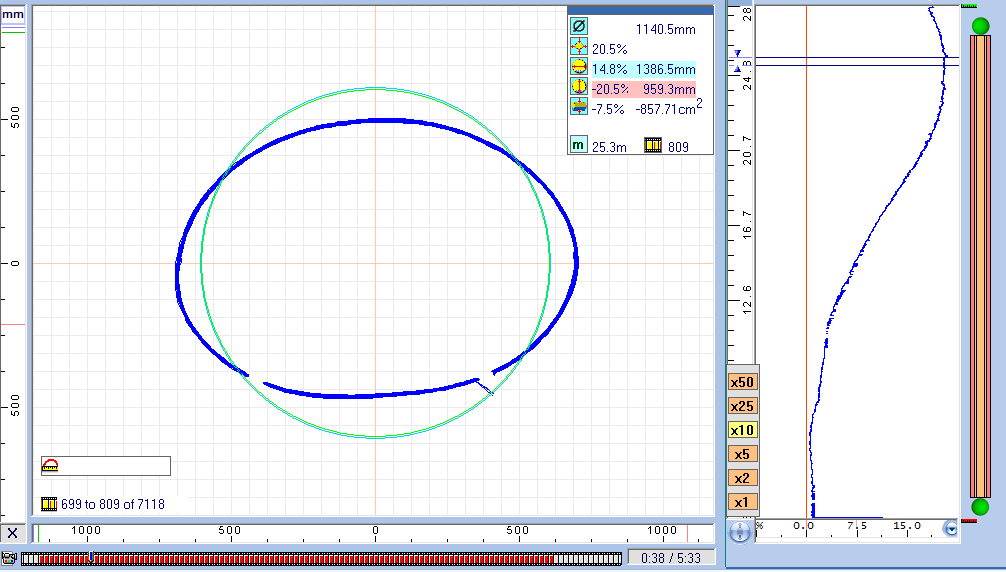

Analysis is performed on the ring of light using the laser profiler software to build a digital pipe profile.

Pipeline laser profiling.

The system can be deployed from portable or vehicle mounted systems. For use with live or pre recorded to video tape cd or dvd. Laser profiling is also used to check newly installed pipes before asphalt is laid and the pipeline is commissioned. Laser profiling is used with cctv cameras and also as a survey tool to record and measure the extent of damage within a pipe.

We own and operate the cues digital universal camera duc ready technology that we plug into various cues inspection modules to provide laser profiling for sewers. This data includes measurements of pipe size laterals water levels and other features as well as automatic analysis of pipe ovality and capacity up to 30. This pipeline laser tool projects a ring of laser light onto the internal surface of the pipe and as the camera moves through the pipe it keeps the laser image in its field of view. The laser profiler assesses the condition of a pipe by measuring the internal diameter ovality roundness and capacity of a length of pipeline.

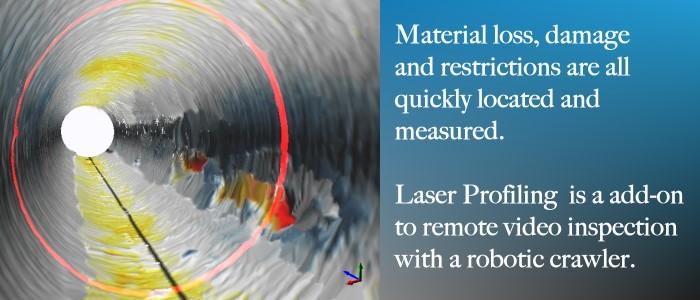

A ring of laser light is projected onto the internal pipe surface. Laser image is in the field of view of the camera while the camera moves through the pipe. With laser profiling we can get extremely accurate pipeline measurements to analyse the ovality alignment diameter and capacity of a pipe using projected laser light. Lidar pipe profiling accurately assesses pipeline condition.

In situ footage is captured. Laser profiler software creates a digital profile of the pipe which can be used on a tv inspection vehicle or remote computer. Our technology pipe vision staff were involved in the pioneering of laser profiling systems in new zealand many years ago. Laser profiling equipment is attached to existing cctv cameras.

Using laser profiling in conjunction with cctv our technicians collect survey data and create pipeline reports regarding the measurement of faults and other features inside the pipeline. Our staff have captured on cctv hundreds of kilometres of mainline trunk sewers throughout new zealand including boat works and laser profiling. The two methods of laser profiling are direct measurement and laser light ring. Pipe vision has employed some of the most experienced cctv operators with proven track records in order to become the best inspection company in the industry.

The system projects a laser ring on the pipe wall which is recorded for data analysis. Abergeldie s laser profiling system provides computer generated pipe profile data. This includes measurements of pipe size laterals water levels and other features as well as automatic analysis of pipe ovality.
